The GRCNSRT Industrial-Grade PV Disconnect Switch is designed for heavy-duty PV systems, RVs, and EV chargers. Built with thickened silver-plated pure copper contacts and a non-polarized design, it ensures maximum conductivity with hassle-free, reversible wiring. For superior protection, it features advanced arc-extinguishing technology, flame-retardant materials, and a padlock design, while the housing delivers IP66 weatherproof durability in harsh outdoor environments.

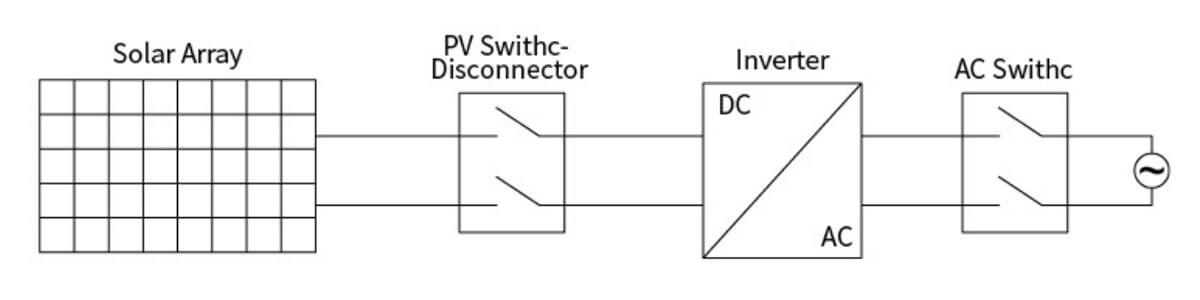

PV disconnect switches connect or isolate solar arrays and inverters/batteries. They support 1-20kW residential and commercial PV systems and meet the DC-side O&M needs of high-power centralized/string power plants.
Application Scenarios
Outdoor Photovoltaic System: Protect your solar investment with the PV isolator switch, which ensures reliable outdoor performance and lasting safety.
Ship Photovoltaic System: Power your marine journey safely with our PV isolator switch; it fits perfectly into tight shipboard compartments where space is premium.
Energy Charging Station: It is a safe and reliable solar energy storage system that can operate in high-temperature environments with high load and continuous charging.
Inside the Combiner Box: Optimize solar combiner boxes with the ultra-compact, DIN-rail-mounted PV isolator switch. Despite its small frame, it achieves high current density.

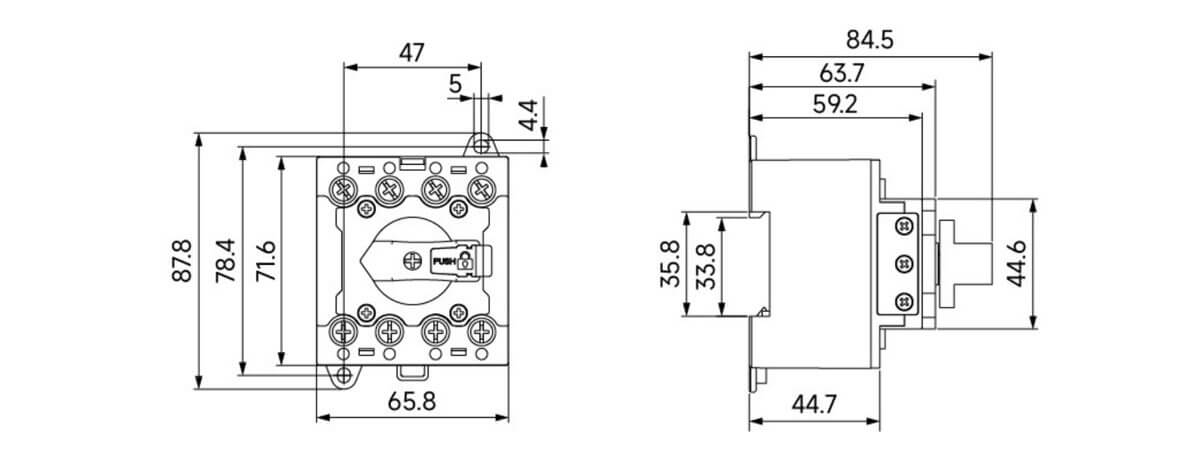

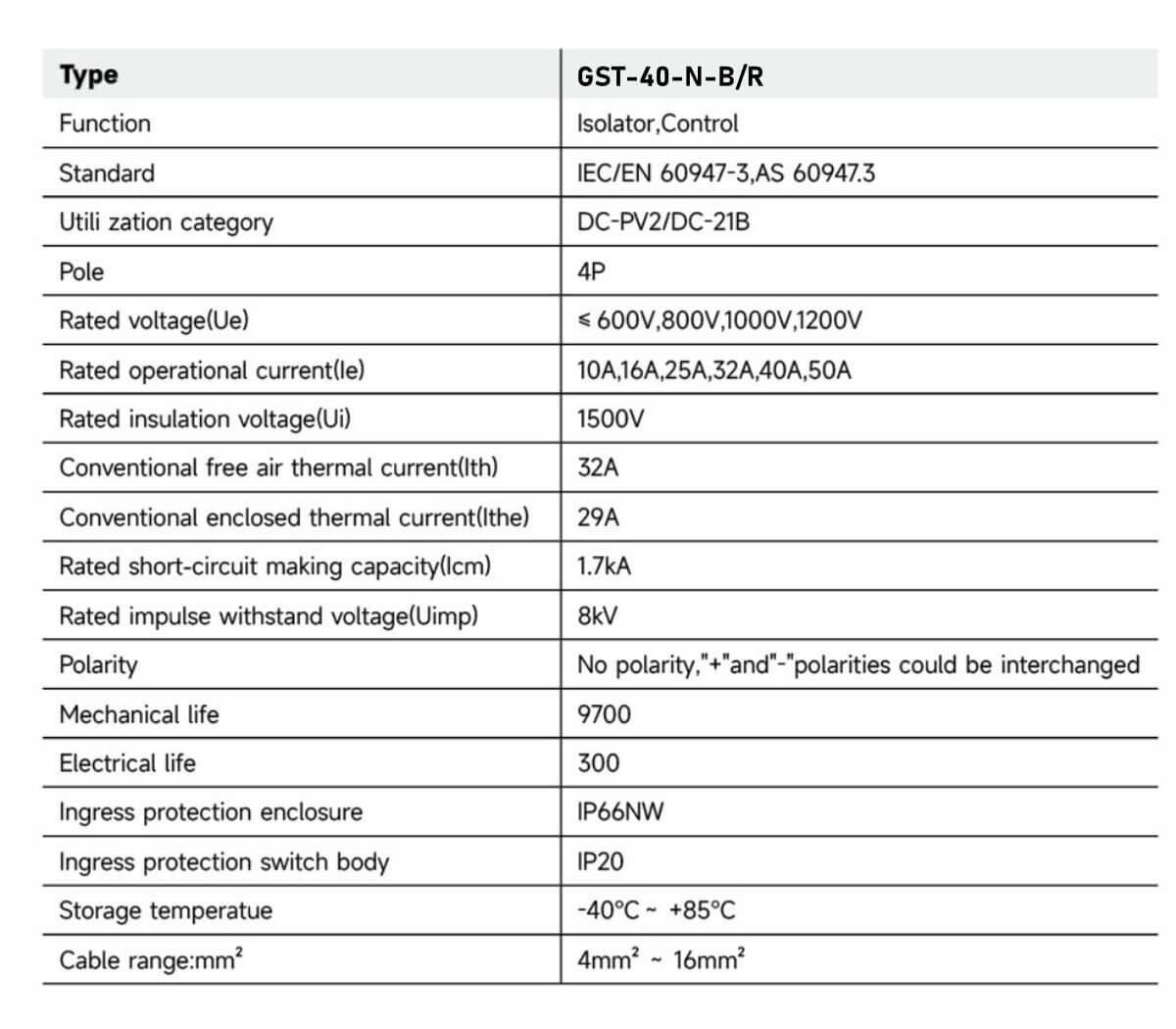

Introduction (GST-40-N-B/R)

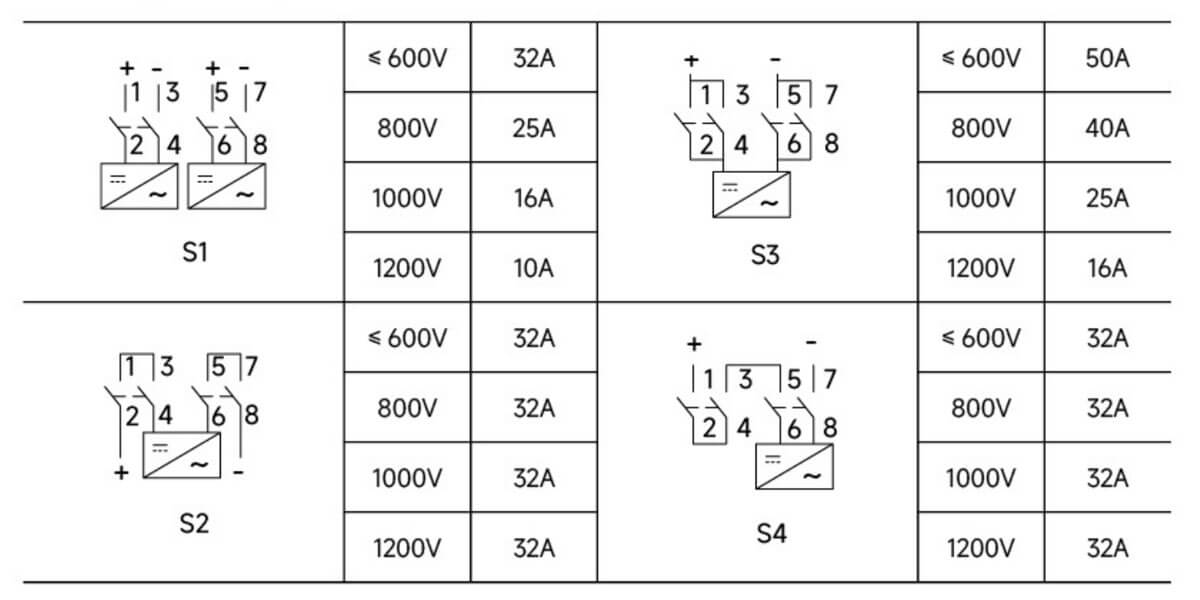

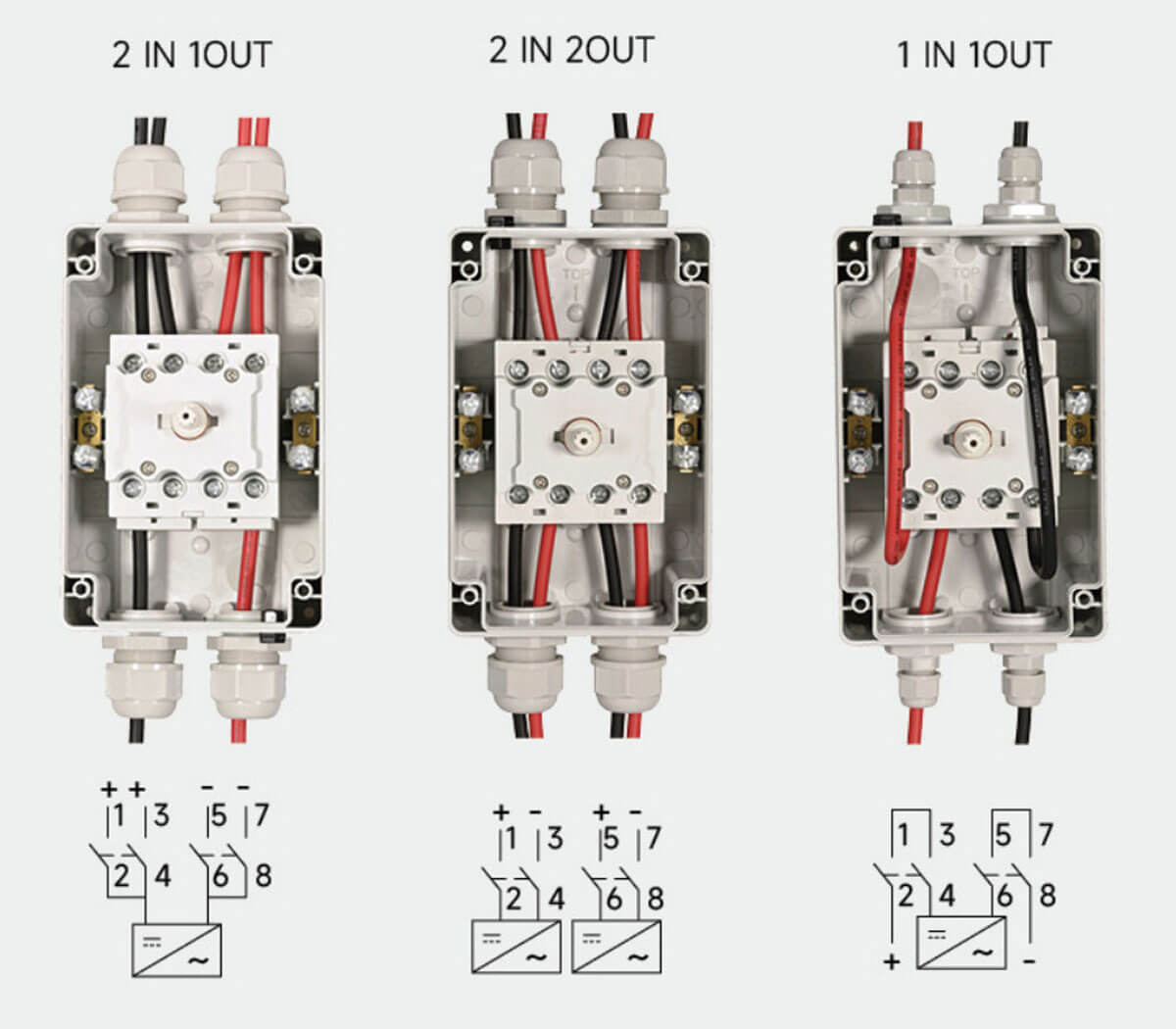

Wiring Graph
- Altitude: Suitable for up to 2000m; use with derating above 2000m.
- Temperature: Operating range is -40°C to +85°C.
- Installation: Install the core switch in a distribution box with proper waterproofing measures.

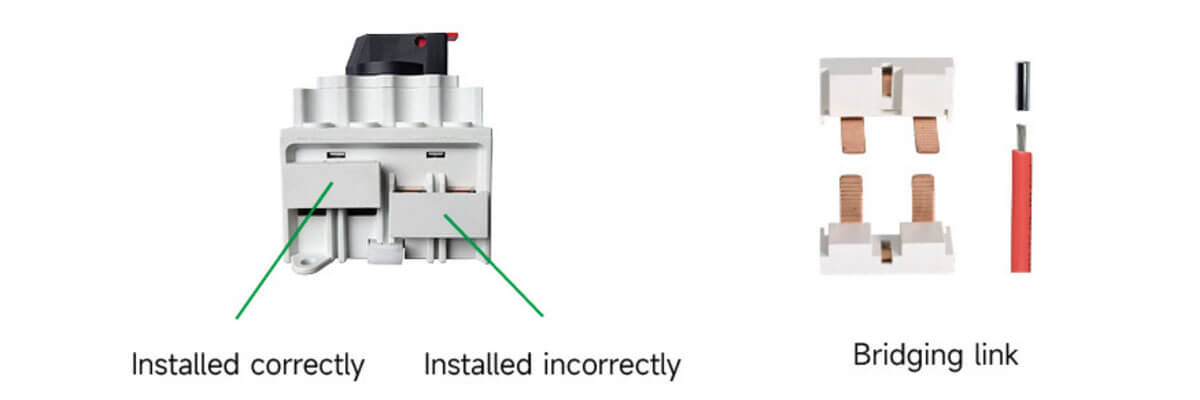

- WARNING: Ensure all connections (including factory/bridge links) match the rated current and clamp only conductive parts. Tighten all terminal screws firmly.

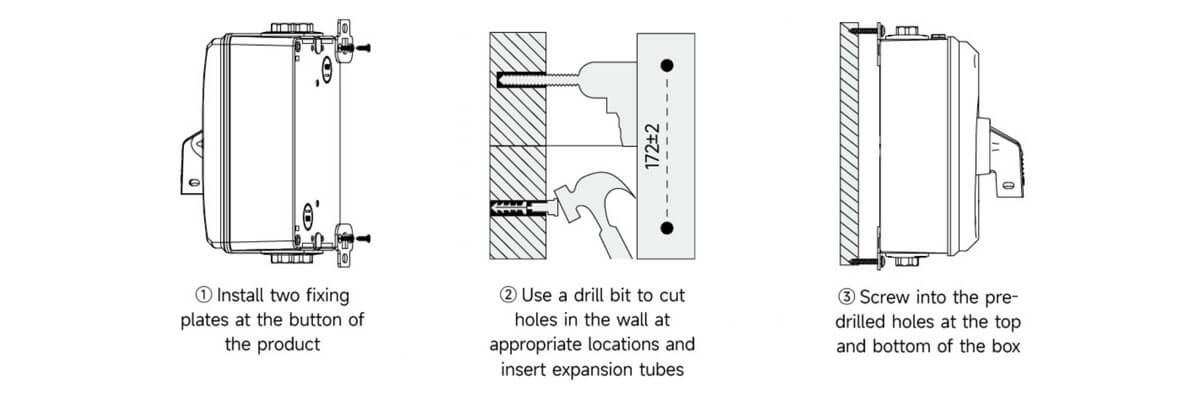

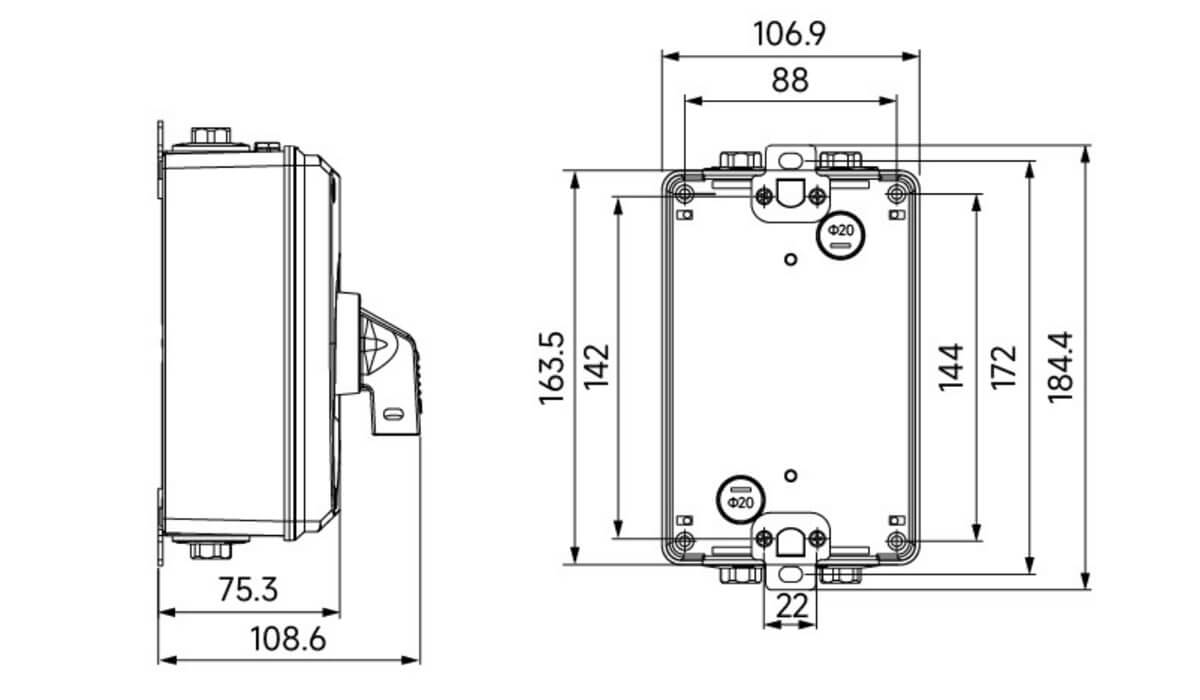

Mounting Instructions

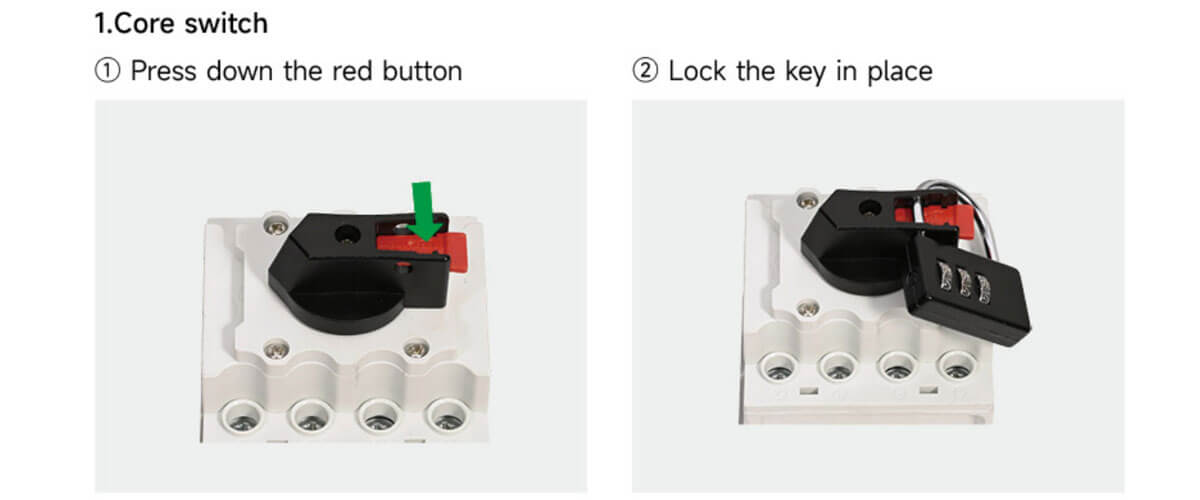

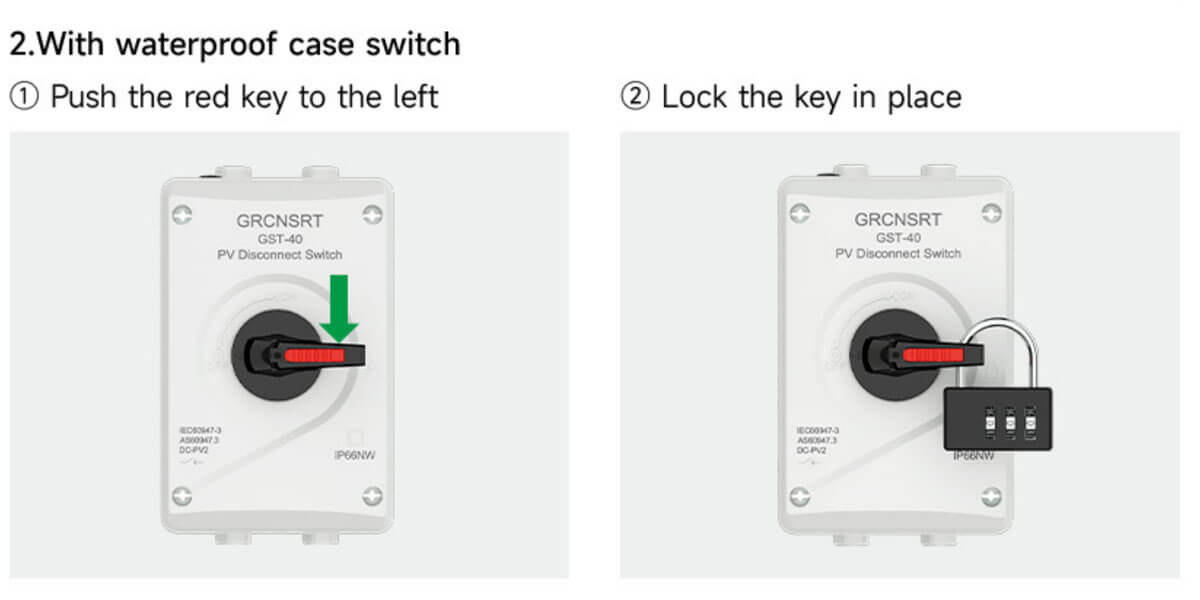

Padlock Installation Steps

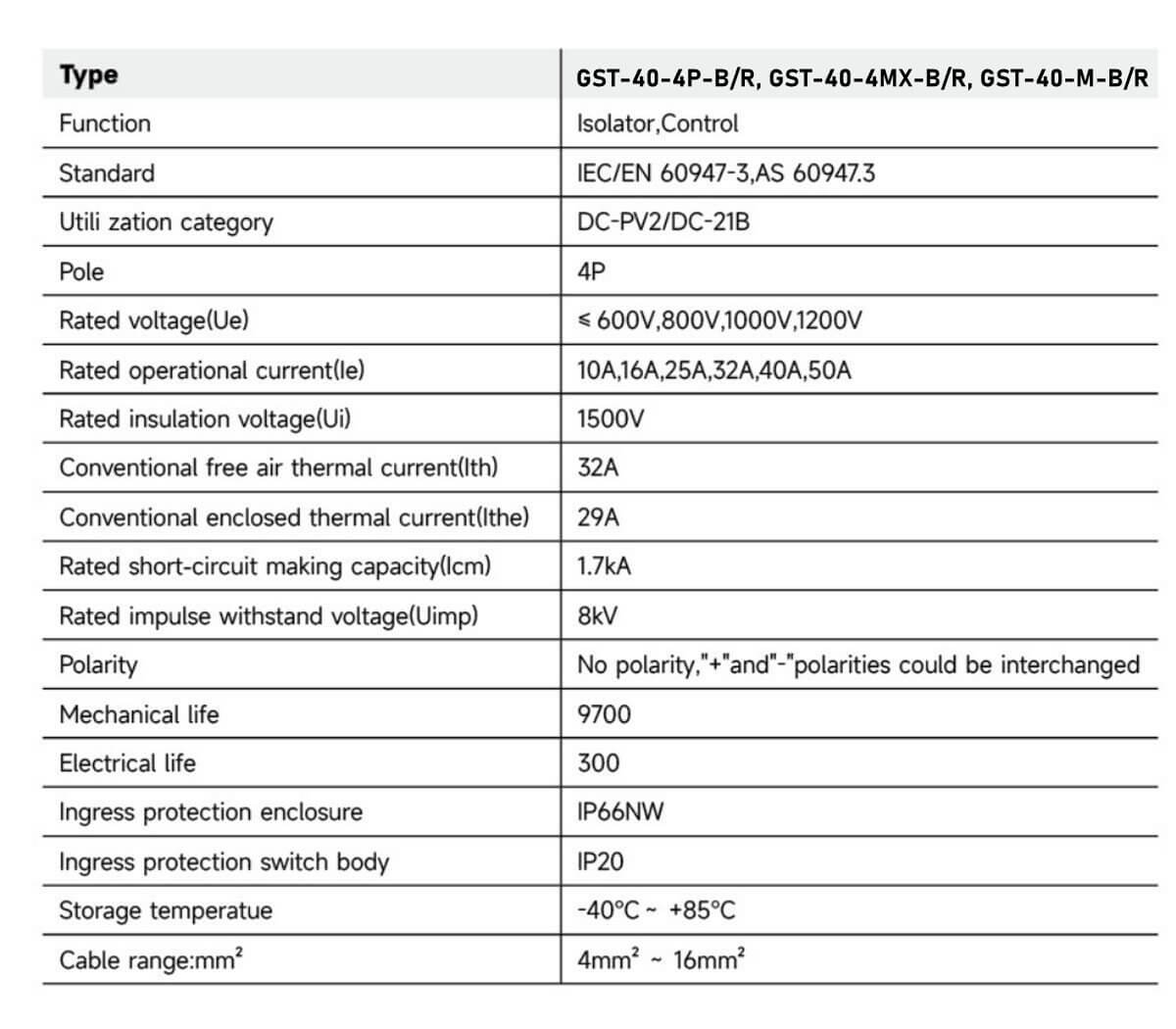

Introduction (GST-40-4P-B/R, GST-40-4MX-B/R, GST-40-M-B/R)
Wiring Graph

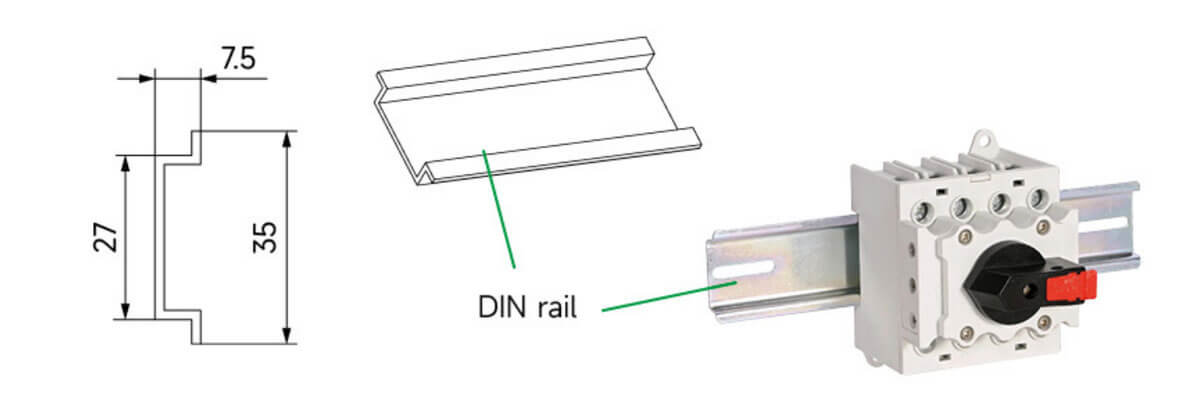

Mounting Instructions
Padlock Installation Steps

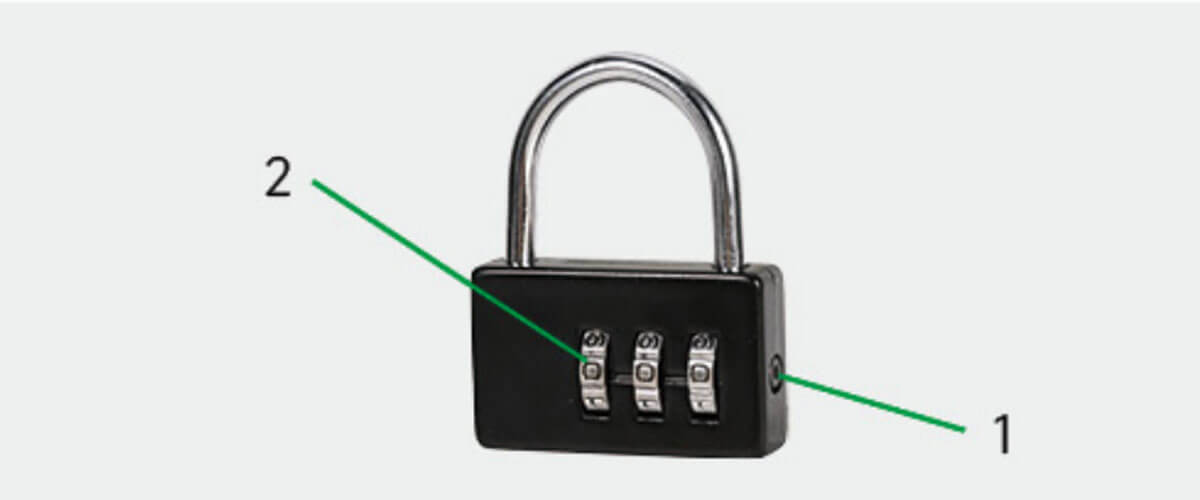

Padlock Password Reset
Remark:
The lock is factory-set with the code 000. You can either use this code or create your own unique code by following these steps:
(1)Press and hold the button in the direction of the arrow.
(2)Release the button and turn the dial to the desired personal combination.
