Brand: GRCNSRT, Product: Solar Panel Connector, Rated Current: 35A (UL) / 40A (TUV), Rated Voltage: 1500V DC, Contact: Tin-plated copper, Insulation Material: PPO, Weatherproof: IP68 (Mated), Wire Capacity: 2.5mm²-6.0mm² (14-10 AWG)
Product features:

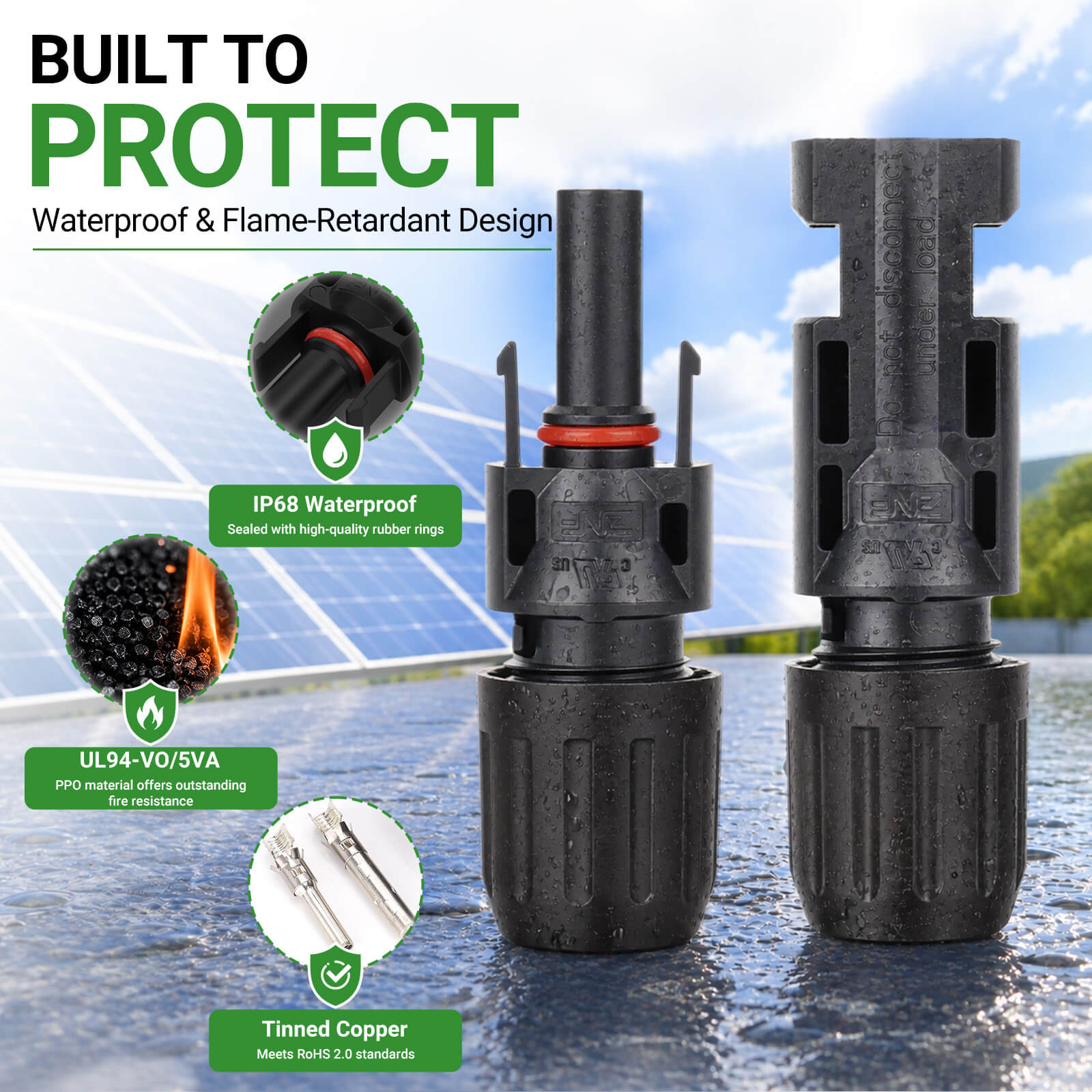

Tin-Plated Copper Core, IP68 Waterproof, Fire-Resistant Material, Max 1500V DC, TUV/UL Certificate, Wrenches Included
| SKU: | GST-ZFM10 |
| Size: | 11.8cm x 2cm x 2cm (LxWxH) |
| Weight: | 0.57 kg |
Product Description
Product Features

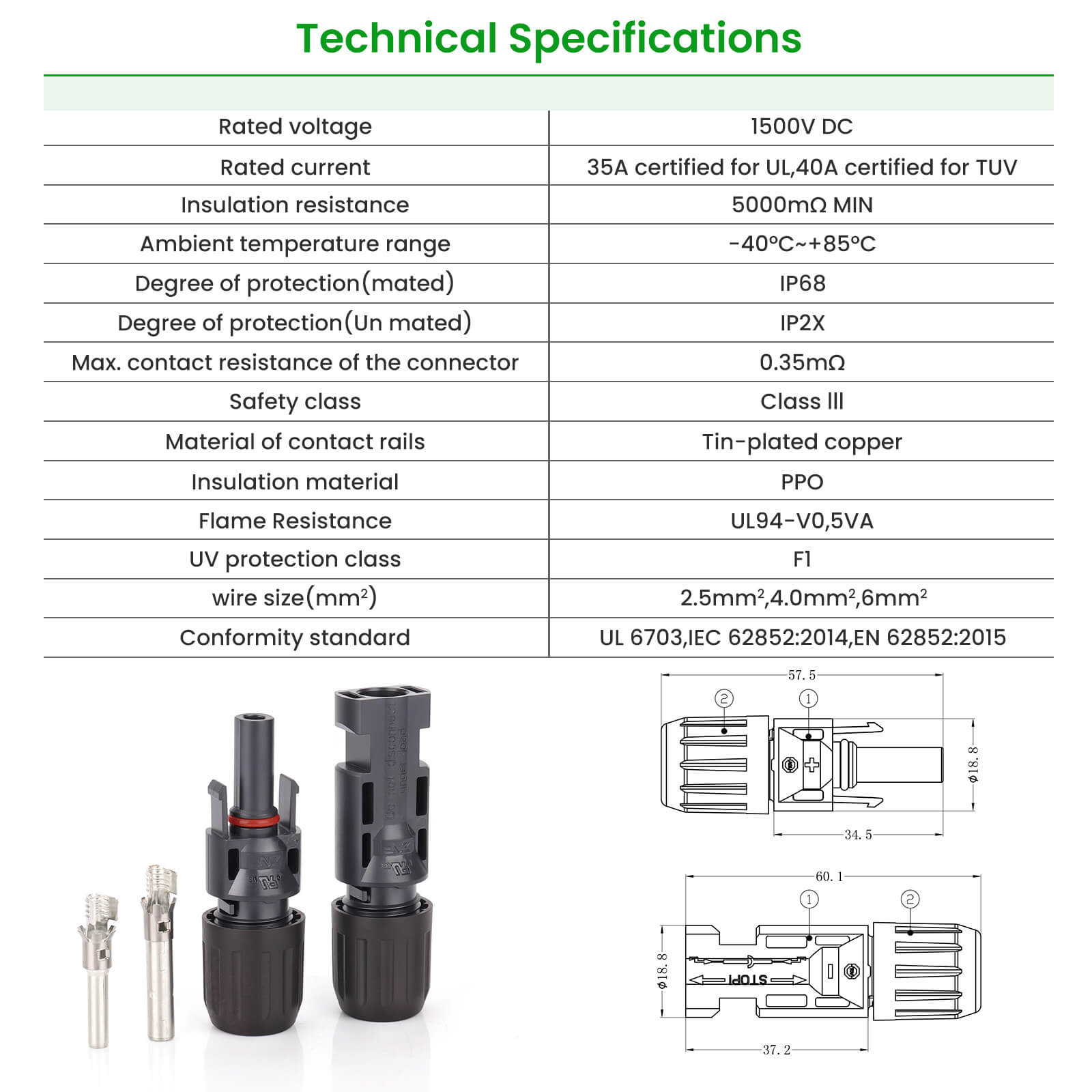

| Brand | GRCNSRT |
| Model | GST-ZFM10 |
| Product Type | MC4 Solar Connector Kit |

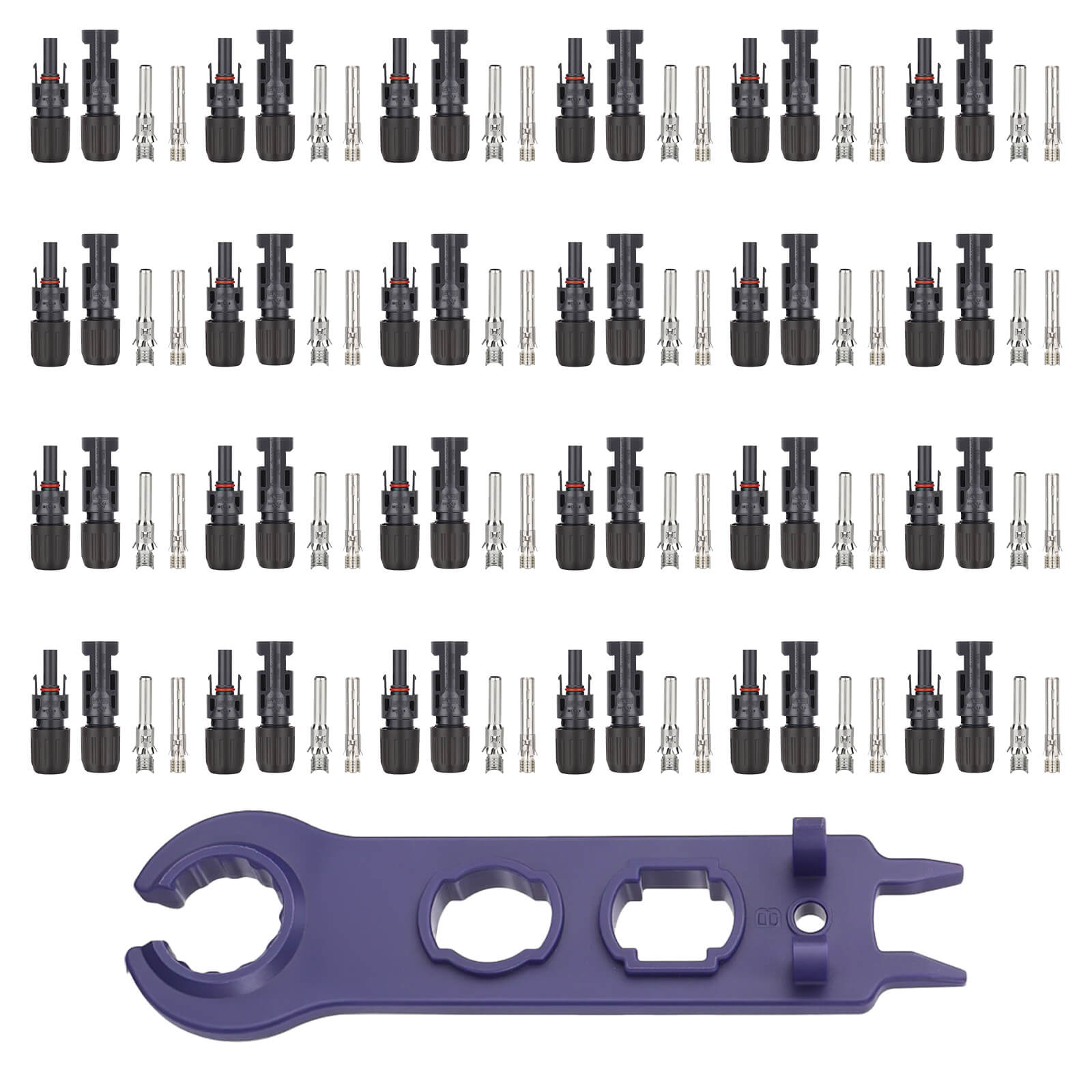

| Package Quantity | 24 Pairs + 1 Wrench |
| Rated Voltage | 1500V DC |
| Rated Current | 35A (UL) / 40A (TUV) |
| Contact Material | Tin-Plated Red Copper Core |
| Insulation Material | Premium PPO |
| Waterproof Rating | |
| Flame Retardancy | UL94-V0 |
| UV Resistance | |
| Contact Resistance | ≤ 0.35mΩ |
| Compatible Wire | 2.5 / 4.0 / 6.0 mm² (14-10 AWG) |
| Temperature Range | -40°C to +85°C |
| Certifications | UL 6703 / IEC 62852 |
